Performance @27ºC, Vacuum |
Performance @50ºC, Dry N2 |
Cold Side |
Hot Side |
Height |
||||||||||
|
TEC TYPE |
dTmax |
Qmax |
Imax |
Umax |
ACR |
dTmax |
Qmax |
Imax |
Umax |
ACR |
A |
B |
C |
D |
H |
|
|
K |
W |
A |
V |
Ohm |
K |
W |
A |
V |
Ohm |
mm |
mm |
mm |
mm |
mm |
|
3MC06-024-xx |
|||||||||||||||
|
3MC06-024-05 |
113 |
0.6 |
2.3 |
1.9 |
0.71 |
115 |
0.7 |
2.3 |
2.2 |
0.80 |
2.5 |
2.5 |
6.0 |
6.0 |
3.8 |
|
3MC06-024-08 |
114 |
0.4 |
1.5 |
1.9 |
1.13 |
112 |
0.4 |
1.5 |
2.2 |
1.26 |
2.5 |
2.5 |
6.0 |
6.0 |
4.7 |
|
3MC06-024-10 |
114 |
0.3 |
1.2 |
1.9 |
1.40 |
109 |
0.4 |
1.2 |
2.2 |
1.56 |
2.5 |
2.5 |
6.0 |
6.0 |
5.3 |
|
3MC06-024-12 |
114 |
0.3 |
1.0 |
2.0 |
1.67 |
106 |
0.3 |
1.1 |
2.2 |
1.87 |
2.5 |
2.5 |
6.0 |
6.0 |
5.9 |
|
3MC06-024-15 |
114 |
0.2 |
0.8 |
1.9 |
2.08 |
102 |
0.2 |
0.9 |
2.2 |
2.33 |
2.5 |
2.5 |
6.0 |
6.0 |
6.8 |
|
3MC06-044-xx |
|||||||||||||||
|
3MC06-044-05 |
112 |
1.1 |
2.2 |
3.5 |
1.31 |
118 |
1.2 |
2.3 |
3.9 |
1.46 |
2.0 |
4.0 |
8.0 |
8.0 |
3.8 |
|
3MC06-044-08 |
114 |
0.7 |
1.4 |
3.5 |
2.06 |
117 |
0.8 |
1.5 |
3.9 |
2.30 |
2.0 |
4.0 |
8.0 |
8.0 |
4.7 |
|
3MC06-044-10 |
114 |
0.6 |
1.2 |
3.5 |
2.56 |
115 |
0.7 |
1.2 |
3.9 |
2.86 |
2.0 |
4.0 |
8.0 |
8.0 |
5.3 |
|
3MC06-044-12 |
114 |
0.5 |
1.0 |
3.5 |
3.07 |
113 |
0.6 |
1.0 |
4.0 |
3.43 |
2.0 |
4.0 |
8.0 |
8.0 |
5.9 |
|
3MC06-044-15 |
114 |
0.4 |
0.8 |
3.5 |
3.82 |
110 |
0.5 |
0.8 |
4.0 |
4.27 |
2.0 |
4.0 |
8.0 |
8.0 |
6.8 |
|
3MC06-046-xx |
|||||||||||||||
|
3MC06-046-03 |
109 |
1.7 |
3.6 |
3.6 |
0.85 |
118 |
1.9 |
3.6 |
4.0 |
0.94 |
2.0 |
4.0 |
10.0 |
8.0 |
3.2 |
|
3MC06-046-05 |
113 |
1.1 |
2.3 |
3.7 |
1.37 |
119 |
1.2 |
2.3 |
4.1 |
1.53 |
2.0 |
4.0 |
10.0 |
8.0 |
3.8 |
|
3MC06-046-08 |
114 |
0.7 |
1.5 |
3.7 |
2.16 |
118 |
0.8 |
1.5 |
4.2 |
2.41 |
2.0 |
4.0 |
10.0 |
8.0 |
4.7 |
|
3MC06-046-10 |
115 |
0.6 |
1.2 |
3.7 |
2.68 |
116 |
0.7 |
1.2 |
4.2 |
2.99 |
2.0 |
4.0 |
10.0 |
8.0 |
5.3 |
|
3MC06-046-12 |
116 |
0.5 |
1.0 |
3.7 |
3.21 |
114 |
0.6 |
1.0 |
4.2 |
3.58 |
2.0 |
4.0 |
10.0 |
8.0 |
5.9 |
|
3MC06-046-15 |
115 |
0.4 |
0.8 |
3.7 |
3.99 |
111 |
0.5 |
0.8 |
4.2 |
4.46 |
2.0 |
4.0 |
10.0 |
8.0 |
6.8 |
|
3MC06-050-xx |
|||||||||||||||
|
3MC06-050-05 |
106 |
1.5 |
2.0 |
3.5 |
1.49 |
111 |
1.7 |
2.1 |
3.9 |
1.66 |
2.5 |
6.5 |
8.0 |
8.0 |
3.8 |
|
3MC06-050-08 |
107 |
1.0 |
1.3 |
3.6 |
2.34 |
109 |
1.1 |
1.3 |
4.0 |
2.62 |
2.5 |
6.5 |
8.0 |
8.0 |
5.3 |
|
3MC06-050-10 |
108 |
0.8 |
1.1 |
3.6 |
2.91 |
107 |
0.9 |
1.1 |
4.0 |
3.26 |
2.5 |
6.5 |
8.0 |
8.0 |
6.8 |
|
3MC06-050-12 |
108 |
0.7 |
0.9 |
3.6 |
3.48 |
105 |
0.7 |
0.9 |
4.0 |
3.89 |
4.0 |
4.5 |
8.0 |
8.0 |
4.7 |
|
3MC06-050-15 |
108 |
0.5 |
0.7 |
3.6 |
4.34 |
103 |
0.6 |
0.8 |
4.1 |
4.85 |
4.0 |
4.5 |
8.0 |
8.0 |
5.9 |
|
3MC06-050-xx |
|||||||||||||||
|
3MC06-050-05/1 |
106 |
1.5 |
2.0 |
3.5 |
1.49 |
110 |
1.7 |
2.1 |
3.9 |
1.66 |
4.0 |
4.5 |
8.0 |
8.0 |
3.8 |
|
3MC06-050-08/1 |
107 |
1.0 |
1.3 |
3.6 |
2.34 |
108 |
1.1 |
1.3 |
4.0 |
2.62 |
4.0 |
4.5 |
8.0 |
8.0 |
4.7 |
|
3MC06-050-10/1 |
108 |
0.8 |
1.1 |
3.6 |
2.91 |
106 |
0.9 |
1.1 |
4.0 |
3.26 |
4.0 |
4.5 |
8.0 |
8.0 |
5.3 |
|
3MC06-050-12/1 |
108 |
0.7 |
0.9 |
3.6 |
3.48 |
104 |
0.7 |
0.9 |
4.0 |
3.89 |
4.0 |
4.5 |
8.0 |
8.0 |
5.9 |
|
3MC06-050-15/1 |
108 |
0.5 |
0.7 |
3.6 |
4.34 |
101 |
0.6 |
0.8 |
4.1 |
4.85 |
4.0 |
4.5 |
8.0 |
8.0 |
6.8 |
|
3MC06-080-xx |
|||||||||||||||
|
3MC06-080-03 |
116 |
2.1 |
3.9 |
7.0 |
1.47 |
125 |
2.3 |
4.0 |
7.9 |
1.63 |
2.0 |
4.0 |
12.0 |
12.0 |
3.2 |
|
3MC06-080-05 |
119 |
1.3 |
2.5 |
7.1 |
2.38 |
127 |
1.5 |
2.5 |
8.0 |
2.66 |
2.0 |
4.0 |
12.0 |
12.0 |
3.8 |
|
3MC06-080-08 |
121 |
0.9 |
1.6 |
7.2 |
3.75 |
125 |
1.0 |
1.7 |
8.1 |
4.19 |
2.0 |
4.0 |
12.0 |
12.0 |
4.7 |
|
3MC06-080-10 |
122 |
0.7 |
1.3 |
7.2 |
4.66 |
123 |
0.8 |
1.3 |
8.2 |
5.21 |
2.0 |
4.0 |
12.0 |
12.0 |
5.3 |
|
3MC06-080-12 |
122 |
0.6 |
1.1 |
7.2 |
5.58 |
122 |
0.7 |
1.1 |
8.2 |
6.23 |
2.0 |
4.0 |
12.0 |
12.0 |
5.9 |
|
3MC06-080-15 |
122 |
0.5 |
0.9 |
7.2 |
6.94 |
119 |
0.5 |
0.9 |
8.3 |
7.76 |
2.0 |
4.0 |
12.0 |
12.0 |
6.8 |
|
3MC06-088-xx |
|||||||||||||||
|
3MC06-088-05 |
112 |
2.2 |
2.2 |
6.8 |
2.62 |
119 |
2.4 |
2.2 |
7.7 |
2.92 |
4.0 |
4.0 |
10.0 |
12.0 |
3.8 |
|
3MC06-088-08 |
113 |
1.4 |
1.4 |
6.9 |
4.13 |
118 |
1.6 |
1.5 |
7.8 |
4.61 |
4.0 |
4.0 |
10.0 |
12.0 |
4.7 |
|
3MC06-088-10 |
114 |
1.2 |
1.2 |
6.9 |
5.13 |
117 |
1.3 |
1.2 |
7.8 |
5.73 |
4.0 |
4.0 |
10.0 |
12.0 |
5.3 |
|
3MC06-088-12 |
114 |
1.0 |
1.0 |
6.9 |
6.13 |
115 |
1.1 |
1.0 |
7.8 |
6.85 |
4.0 |
4.0 |
10.0 |
12.0 |
5.9 |
|
3MC06-088-15 |
114 |
0.8 |
0.8 |
6.9 |
7.64 |
113 |
0.9 |
0.8 |
7.8 |
8.54 |
4.0 |
4.0 |
10.0 |
12.0 |
6.8 |

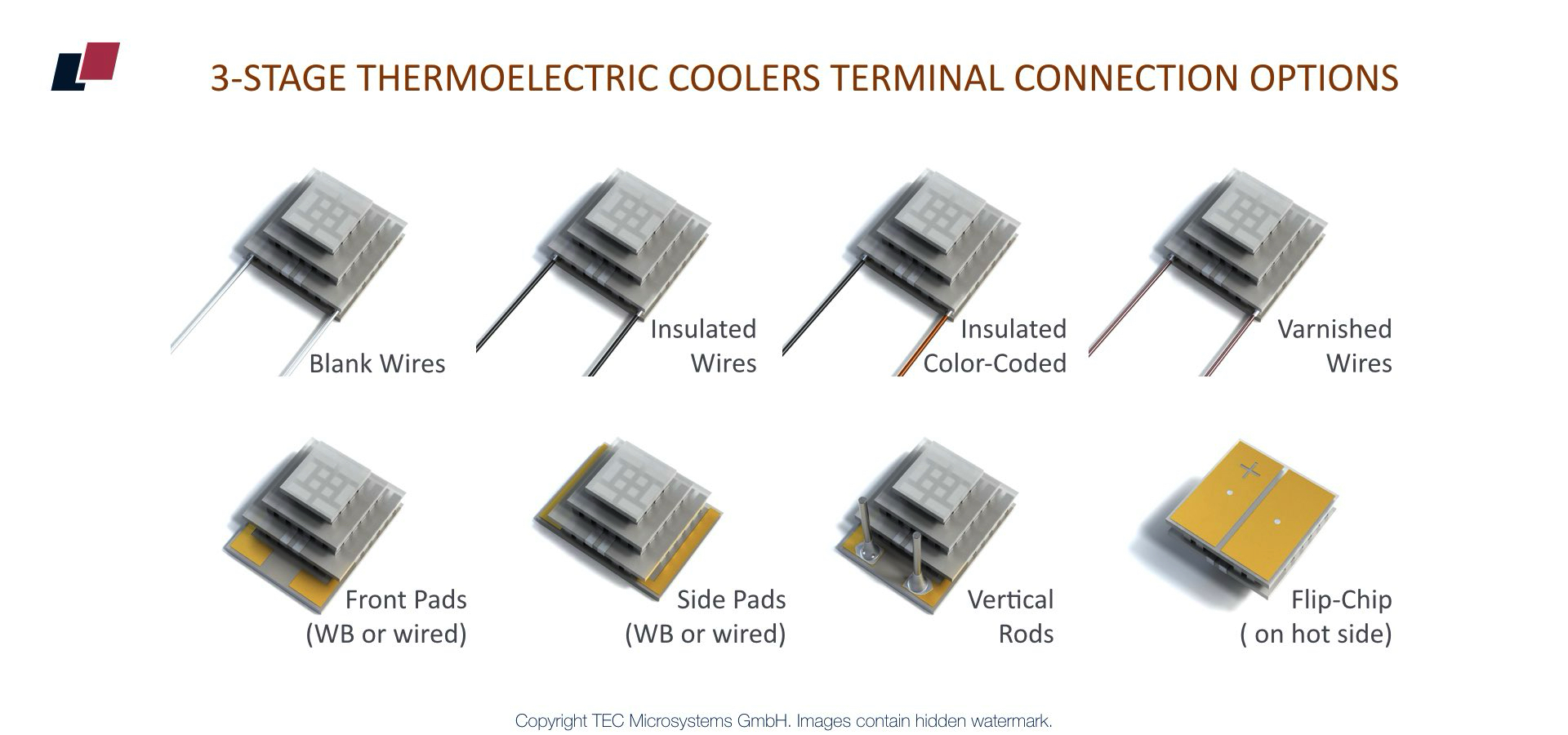

Thermoelectric coolers of MC06 Series represent our solid and reliable "classic" TECs. MC06 Series is based on regular TEC assembly technology with ~100elements/cm2 pellets placement density. 3-stage thermoelectric coolers in MC06 Series have cold side dimensions from from 2.0 x 4.0mm2 up to 16.0 x 16.0mm2. MC06 TEC Series is universal by application focus with many surface options and terminal connection configurations. All thermoelectric coolers are assembled using RoHS compliant Sn-Sb solder with a melting temperature Tmelt=230ºC. Thermoelectric coolers of MC06 Series meet Telcordia GR-486 standard requirements. Wide range of TEC manufacturing options is available. The standard and most common 3-stage types from our MC06 Series are listed in the table below. Detailed TEC drawings, models, performance plots and estimations for particular application conditions are provided by request.
3MC06
Three-stage
TE Coolers
3MC06 TE COOLERS ADVANTAGES
3MC06 TE COOLERS KEY FEATURES
◻︎ "Classic" regular assembly technology
◻ Dimensions from 2x2mm2 up to 6x6mm2
◻ Wide range of standard TEC types available
◻ Wide range of manufacturing options available
◻ High-quality bulk BiTe material
◻ Accurate steam soldering technology
◻ RoHS compliant TE Coolers by default
◻ Telcordia GR-468 qualified TECs
STANDARD MC06 SERIES 3-STAGE THERMOELECTRIC COOLERS AVAILABLE
