TEC Microsystems - Miniature Thermoelectric Coolers and Sub-Assemblies

ISO9001:2015 Certified



Performance @27ºC, Vacuum

Performance @50ºC, Dry N2

Cold Side

Hot Side

Height

TEC TYPE

dTmax

Qmax

Imax

Umax

ACR

dTmax

Qmax

Imax

Umax

ACR

A

B

C

D

H


K

W

A

V

Ohm

K

W

A

V

Ohm

mm

mm

mm

mm

mm

3MC04-044-xx

3MC04-044-05

113

0.5

1.0

3.5

2.89

113

0.6

1.1

3.9

3.23

2.4

2.4

6.4

6.4

3.8

3MC04-044-08

114

0.3

0.7

3.5

4.59

109

0.4

0.7

4.0

5.13

2.4

2.4

6.4

6.4

4.7

3MC04-044-10

114

0.3

0.5

3.5

5.71

106

0.3

0.6

4.0

6.39

2.4

2.4

6.4

6.4

5.3

3MC04-044-12

113

0.2

0.4

3.5

6.84

103

0.3

0.5

4.0

7.65

2.4

2.4

6.4

6.4

5.9

3MC04-044-15

113

0.2

0.4

3.5

8.54

98

0.2

0.4

4.0

9.55

2.4

2.4

6.4

6.4

6.8

3MC04-046-xx

3MC04-046-03

111

0.8

1.7

3.7

1.84

115

0.9

1.7

4.1

2.06

2.4

2.4

8.0

6.4

3.2

3MC04-046-05

114

0.5

1.0

3.7

3.02

114

0.6

1.1

4.1

3.38

2.4

2.4

8.0

6.4

3.8

3MC04-046-08

114

0.3

0.7

3.7

4.79

110

0.4

0.7

4.2

5.36

2.4

2.4

8.0

6.4

4.7

3MC04-046-10

114

0.3

0.5

3.7

5.97

107

0.3

0.6

4.2

6.68

2.4

2.4

8.0

6.4

5.3

3MC04-046-12

114

0.2

0.5

3.8

7.15

104

0.3

0.5

4.2

8.00

2.4

2.4

8.0

6.4

5.9

3MC04-046-15

114

0.2

0.4

3.7

8.93

99

0.2

0.4

4.2

9.98

2.4

2.4

8.0

6.4

6.8

3MC04-076-xx

3MC04-076-05

110

1.0

1.0

5.7

5.00

110

1.1

1.0

6.4

5.58

4.0

4.0

8.0

8.0

3.8

3MC04-076-08

111

0.6

0.6

5.7

7.92

106

0.7

0.7

6.5

8.85

4.0

4.0

8.0

8.0

4.7

3MC04-076-10

111

0.5

0.5

5.7

9.87

103

0.6

0.5

6.4

11.04

4.0

4.0

8.0

8.0

5.3

3MC04-076-12

110

0.4

0.4

5.7

11.82

100

0.5

0.4

6.5

13.22

4.0

4.0

8.0

8.0

5.9

3MC04-076-15

110

0.3

0.3

5.8

14.75

96

0.4

0.4

6.6

16.50

4.0

4.0

8.0

8.0

6.8

3MC04-112-xx

3MC04-112-05

110

1.4

1.0

8.3

7.36

114

1.6

1.0

9.4

8.22

3.2

4.8

9.6

9.6

3.8

3MC04-112-08

111

0.9

0.6

8.4

11.67

111

1.0

0.6

9.5

13.05

3.2

4.8

9.6

9.6

4.7

3MC04-112-10

111

0.7

0.5

8.4

14.55

109

0.8

0.5

9.5

16.27

3.2

4.8

9.6

9.6

5.3

3MC04-112-12

111

0.6

0.4

8.4

17.42

107

0.7

0.4

9.6

19.48

3.2

4.8

9.6

9.6

5.9

3MC04-112-15

111

0.5

0.3

8.5

21.73

104

0.6

0.4

9.5

24.31

3.2

4.8

9.6

9.6

6.8


3MC04 TE COOLERS ADVANTAGES

3MC04 TE COOLERS KEY FEATURES

◻︎ "Classic" regular assembly technology

◻ Cold Side from 2.5x2.5mm2 up to 4x4mm2

◻ Wide range of standard TEC types available

◻ Wide range of manufacturing options available

◻ High-quality bulk BiTe material

◻ Accurate steam soldering technology

◻ RoHS compliant TE Coolers by default

◻ Telcordia GR-468 qualified TECs

(placeholder)

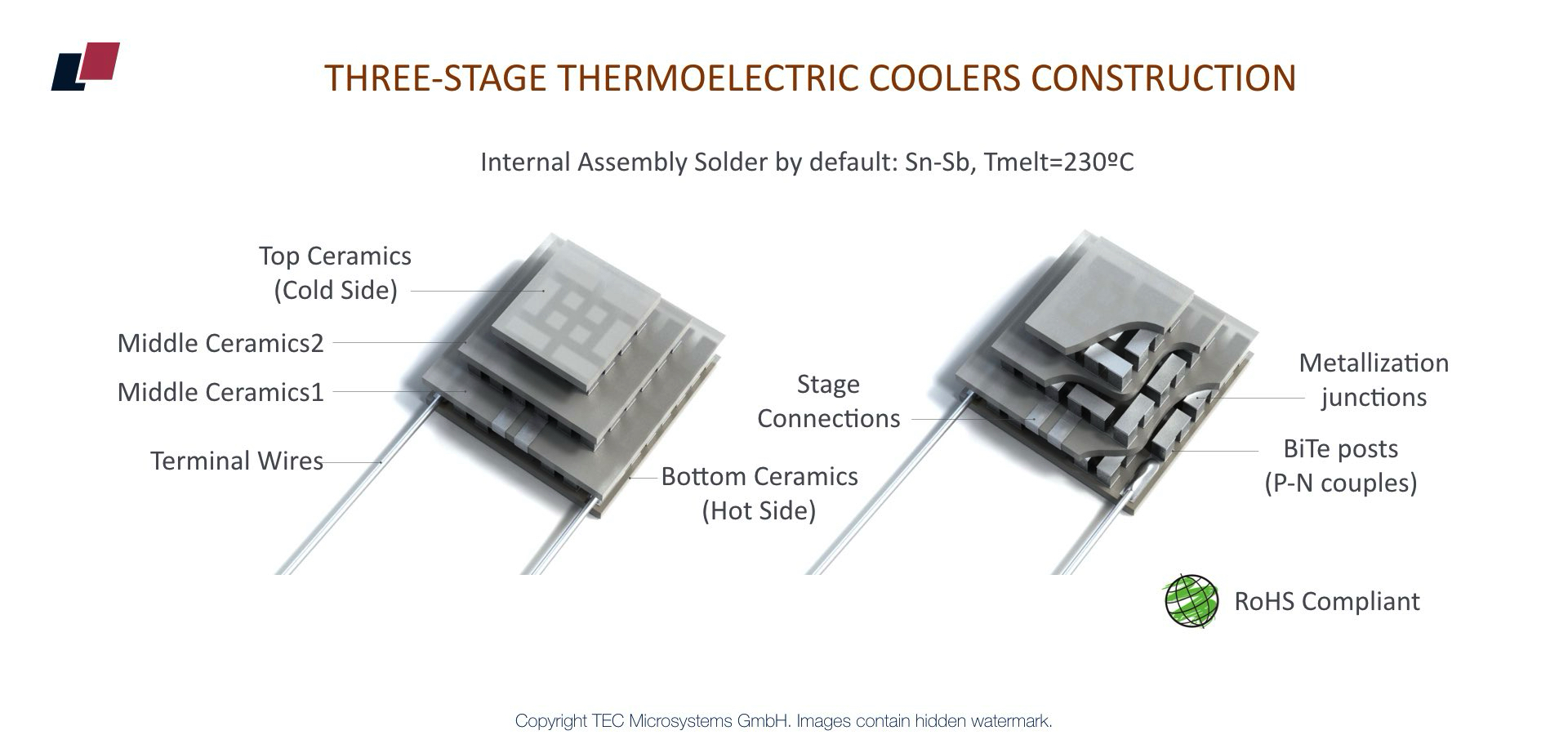

STANDARD MC04 SERIES 3-STAGE THERMOELECTRIC COOLERS AVAILABLE

4MC04

Four-stage

TE Cooler

3MC04

Three-stage

TE Coolers

2MC04

Two-stage

TE Coolers

1MC04

Single-stage

TE Coolers

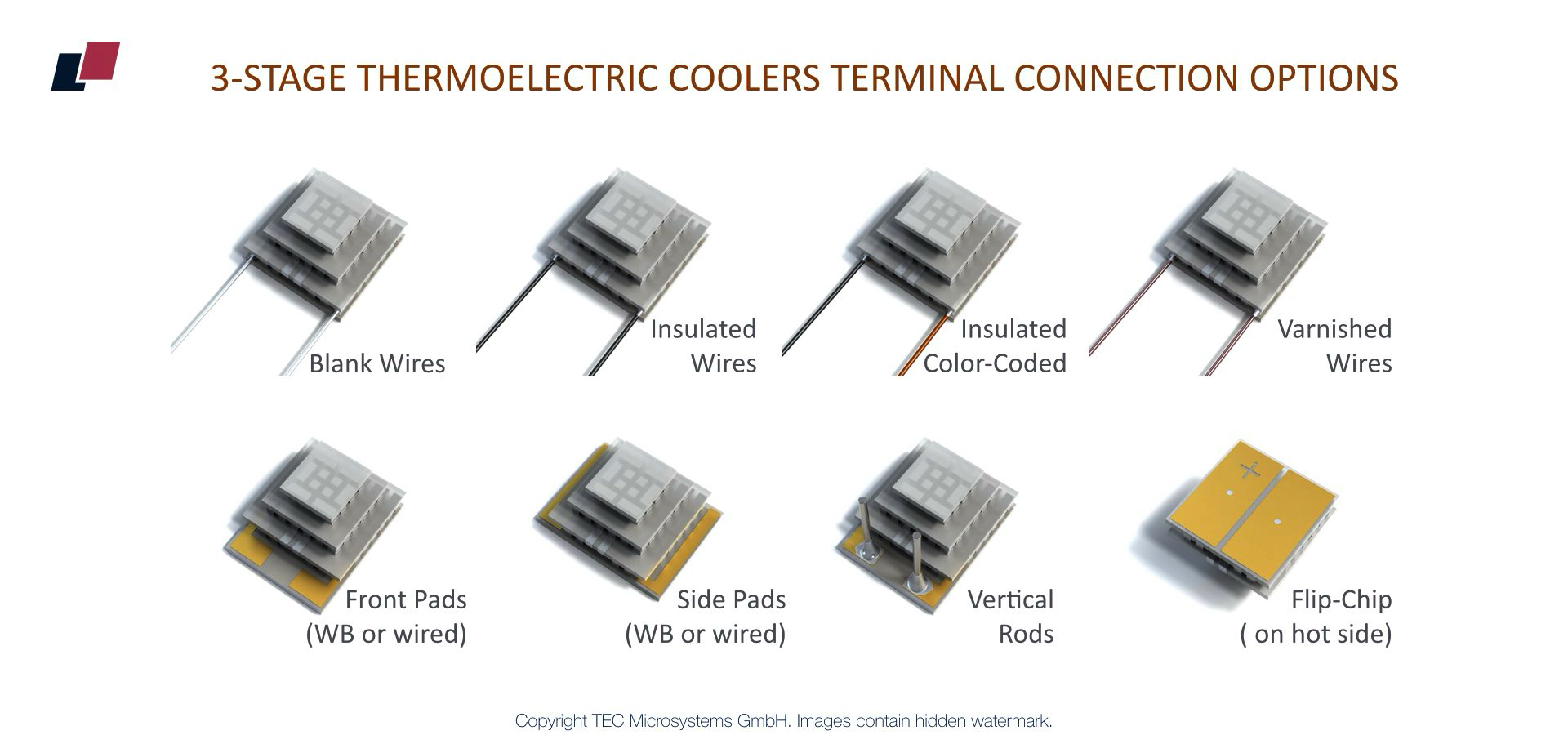

Thermoelectric coolers of MC04 Series represent our solid and reliable "classic" TECs.  MC04 Series is based on regular TEC assembly technology with ~150elements/cm2 pellets placement density.  MC04 Series is technologically close to MC06 Series, but consists of smaller TECs, cause it's based on smaller pellets cross-section.  3-stage thermoelectric coolers in MC04 Series have cold side dimensions from 2.5 x 2.5mm2   up to 4.0 x 4.0mm2 .  MC04 TEC Series is universal by application focus with many surface options and terminal connection configurations.  All thermoelectric coolers are assembled using RoHS compliant Sn-Sb solder with a melting temperature Tmelt=230ºC.  Thermoelectric coolers of MC04 Series meet Telcordia GR-486 standard requirements.  Wide range of TEC manufacturing options is available.  The standard and most common 3-stage types from our MC04 Series are listed in the table below. Detailed TEC drawings, 3D models, performance plots and estimations for particular application conditions are provided by request.

MD04 Series

Thermoelectric coolers with the same dimensions as MC04 types,  but based on High-Density (HD) Assembly technology. TEC cooling capacity (Qmax) is up to 60% higher comparing with MC04 TECs with the same size.  Alternatively MD04 Series provides analogs of MC04 TECs by performance, but with smaller dimensions.

MD06 Series

HD Technology alternative to MC06 Series - thermoelectric coolers with the same dimensions, but mean 35% higher cooling capacity.  MD06 TECs can be also a good choice, if you're looking for a thermoelectric cooler smaller than standard MC06 type, but having the same performance.

MD03 Series

Miniature single- and multistage thermoelectric coolers with Advanced HD pellets placement technology. Compact single-stage thermoelectric solutions for telecom industry.
